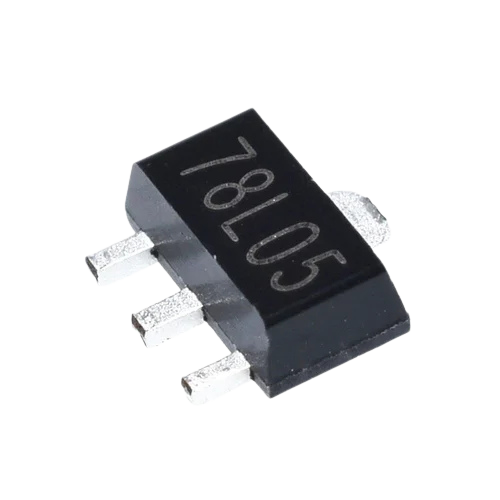

78L05 SOT-89 Voltage Regulator

The 78L05 SOT-89 Voltage Regulator is a fixed 5V linear regulator offered in a compact SOT-89 surface-mount package. It is designed to provide a stable 5V output for a wide range of electronic circuits where board space is limited and a reliable low-cost regulation solution is required.

This regulator is suitable for use in consumer electronics, embedded systems, sensor modules, small development boards, and other compact devices that require a regulated 5V supply. The SOT-89 package provides a balance between thermal performance and a small footprint, enabling straightforward placement on densely populated printed circuit boards.

The device is straightforward to integrate: it uses standard three-terminal connections for input, ground, and output, and it typically requires only basic input and output decoupling capacitors to ensure stable operation. Designers will appreciate the simplicity of implementation when converting an unregulated supply into a clean 5V rail for microcontrollers, logic devices, and peripheral components.

Because it is a fixed-voltage regulator, the 78L05 eliminates the need for programming or complex external components to set the output voltage, helping to reduce component count and simplify design and assembly processes. Its combination of compact packaging and a fixed 5V output makes it a practical choice for many space-constrained power regulation applications.
