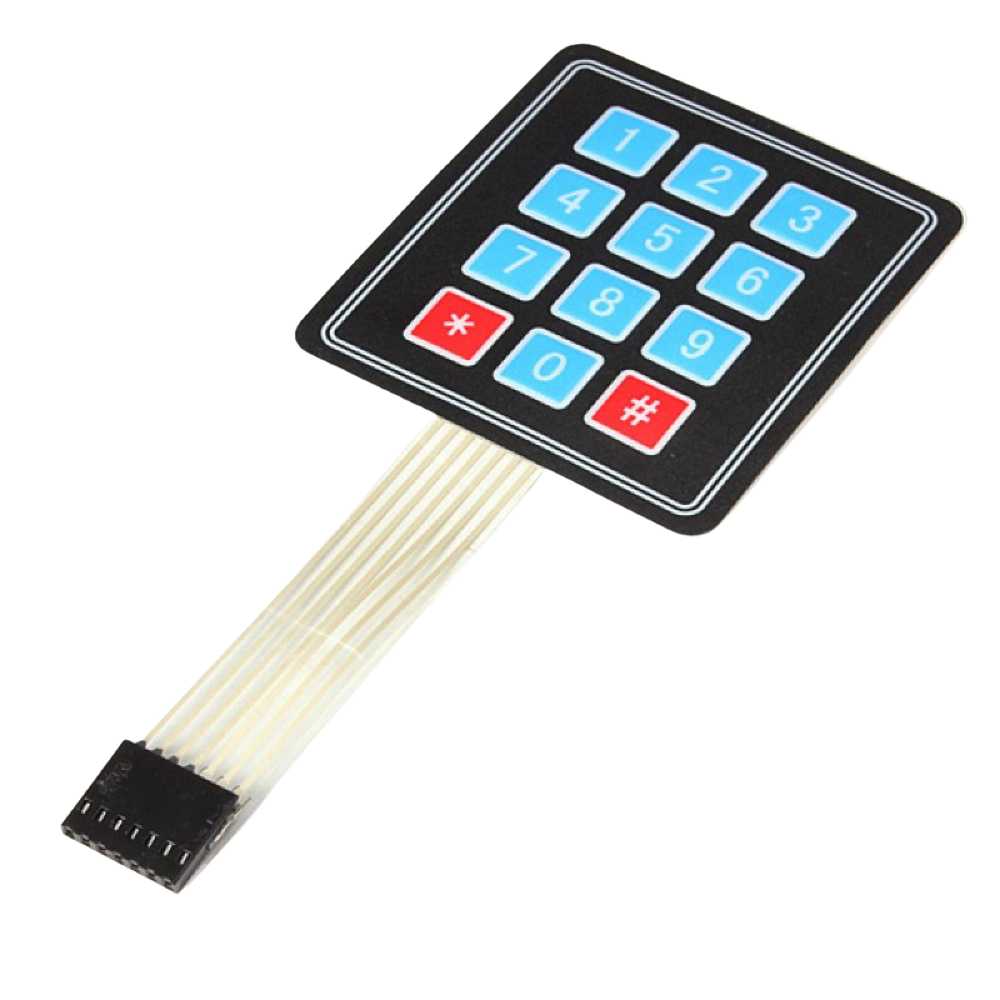

4x3 Matrix Membrane Keypad

The 4x3 Matrix Membrane Keypad is a compact, low-profile input device configured in a 4 by 3 matrix layout to provide twelve keys for numeric and function entry. Its membrane construction delivers a smooth, sealed surface that minimizes dust accumulation and offers a flat form factor suitable for applications where space and durability are priorities.

This keypad arranges switches in a matrix to reduce the number of interface lines required between the keypad and a host controller, enabling simple microcontroller or PLC scanning routines. Typical uses include access control panels, point-of-sale terminals, consumer electronics, embedded control systems, and prototyping environments that require a straightforward numeric keypad with optional function keys.

Key features and considerations:

• 12-key 4x3 matrix layout for numeric input and common function keys.
• Membrane construction provides a flat, easy-to-clean surface and compact profile.
• Matrix wiring reduces I/O lines and simplifies scanning in firmware.
• Suitable for integration behind bezels or within housings where a low-profile user interface is needed.
• Installation requires matching the keypad matrix to the host input routine and ensuring correct mechanical retention in the target enclosure.

Because membrane keypads vary by actuator style, contact method, and mounting provisions, verify compatibility with your system requirements and controller interface before installation.
