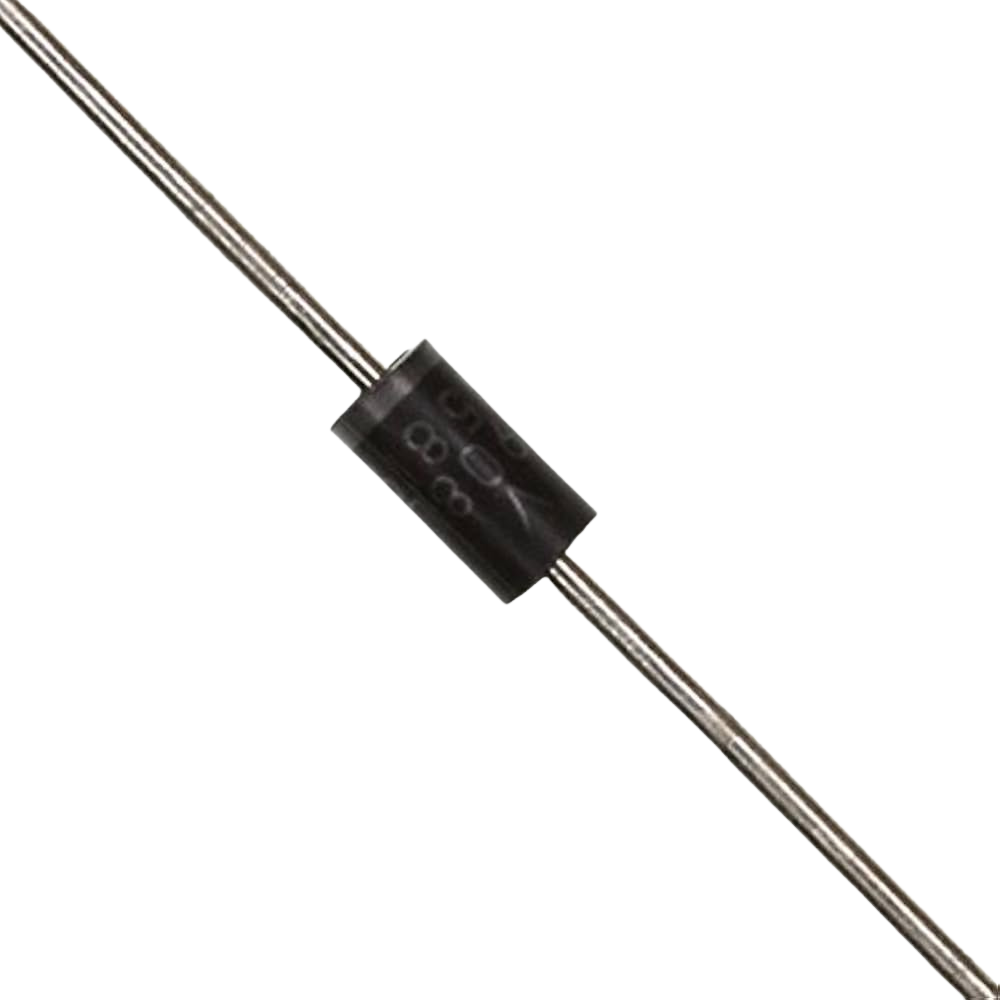

1N5819 Schottky Barrier Rectifier Diode 1A 40V

The 1N5819 Schottky Barrier Rectifier Diode 1A 40V is a widely used semiconductor component designed for low forward voltage drop and fast switching in power and signal applications. As a Schottky barrier device, it offers characteristics favorable to efficient rectification and protection functions where minimizing energy loss and switching delay is important.

Key characteristics and considerations:

• Schottky barrier junction technology that provides lower forward voltage compared with standard PN junction diodes, improving efficiency in low-voltage circuits.
• Rated for continuous current applications up to 1 ampere and for reverse voltage up to 40 volts, making it suitable for many low-voltage power conversion and protection roles.
• Fast switching response typical of Schottky diodes, reducing switching losses in high-frequency or pulse-width-modulated circuits.
• Common uses include rectification in power supplies, reverse-polarity protection, clamp circuits, freewheeling diodes in switching regulators, and general-purpose low-voltage power management tasks.

Design and application notes: ensure adequate heat dissipation and observe polarity during installation, as improper mounting can lead to device failure. While the 1N5819 is chosen for its efficiency and speed, system designers should verify thermal and electrical margins in their specific application contexts. This component is compatible with standard circuit board assembly techniques and is typically selected where a balance of low forward drop and durable rectification is required.
