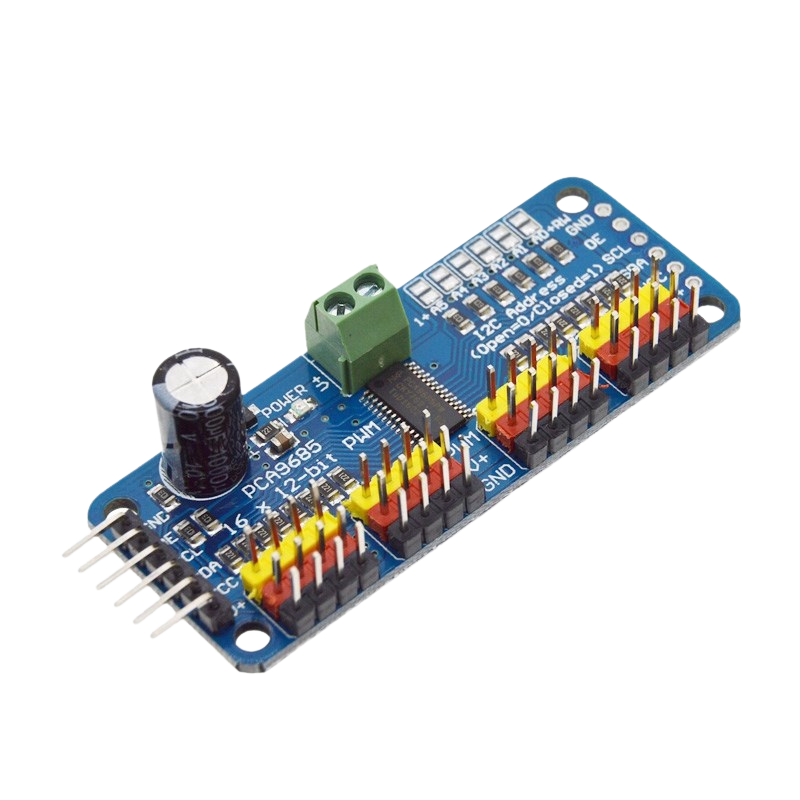

16-Channel 12-bit PWM/Servo Driver I2C interface PCA9685 متحكم سيرفر موتور أصلي

The 16-Channel 12-bit PWM/Servo Driver PCA9685 is a compact I2C-controlled module designed to simplify control of up to sixteen PWM outputs or hobby servos. This driver provides 12-bit resolution for each channel, allowing fine-grained pulse width modulation for smooth, precise servo movement and accurate LED dimming. The module communicates over a standard I2C interface, requiring only two signal lines plus power, and supports multiple devices on the same bus through configurable addresses.

Engineered for integration with microcontrollers, single-board computers, and robotics platforms, the PCA9685 offloads PWM generation from the host CPU, freeing processing resources and reducing timing jitter. Each output can be independently configured, and the driver supports a wide range of PWM frequencies to match servo and LED requirements. The board typically includes a separate V+ terminal to supply motor or servo power independently from the logic supply, improving stability when driving multiple loads.

Typical uses include multi-servo robots, animatronics, camera gimbals, LED arrays, and other projects requiring many synchronized PWM channels. The module's compact footprint, standardized I2C control, and per-channel 12-bit precision make it a practical choice for hobbyists and engineers who need reliable, scalable PWM control for servos and LEDs.
