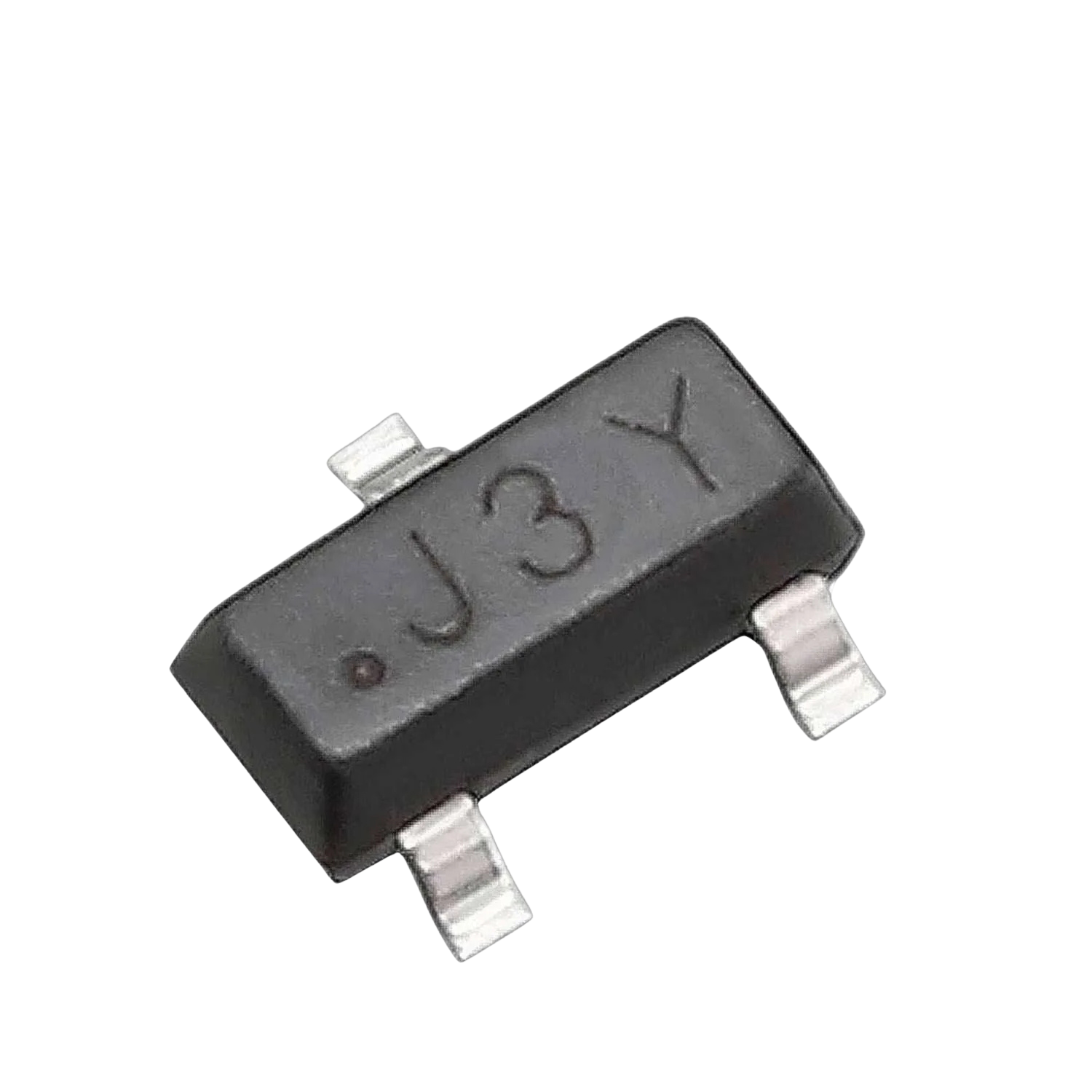

S8050 J3Y 500mA 40V NPN SOT-23 SMD Transistor

The S8050 J3Y 500mA 40V NPN SOT-23 SMD Transistor is a compact surface-mount bipolar junction transistor designed for general-purpose switching and amplification in compact electronic assemblies. Packaged in a SOT-23 footprint, this device combines a small board area with the robustness required for moderate-current, low- to medium-voltage applications. Key attributes indicated by the part name include NPN polarity, a maximum collector current rating of 500mA, and a maximum collector-emitter voltage of 40V, making it suitable for signal-level switching, driver stages, interface circuits, and simple power control tasks. The SOT-23 package supports automated pick-and-place assembly and reflow soldering, enabling efficient high-volume production and reliable surface-mount installation. Typical usages for the S8050 J3Y include switching loads such as relays, LEDs, and small motors where current and voltage stay within the device limits, implementing low-side drivers, buffering logic signals, and serving in amplification roles in small-signal stages. Designers will appreciate the transistor's size and compatibility with standard SMD assembly processes when optimizing board layout and thermal management. When integrating this transistor, observe recommended PCB footprint guidelines and thermal considerations to ensure performance within rated limits. For precise electrical parameters such as gain, saturation voltage, and frequency response, refer to the manufacturer’s datasheet for the exact S8050 J3Y device number and lot-specific specifications.
