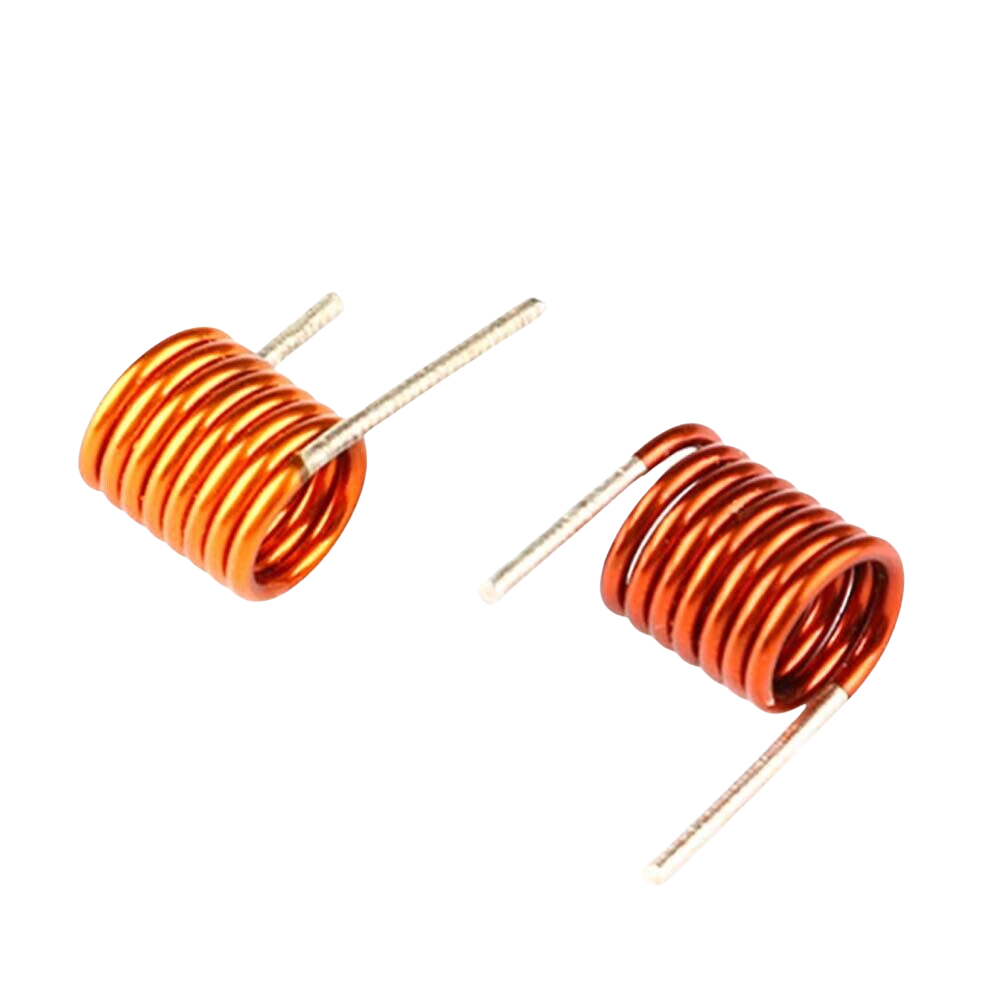

Coil Inductors ملفات

Coil Inductors (ملفات) are passive electrical components that store energy in a magnetic field when electrical current passes through their windings. They are fundamental building blocks in a wide range of electronic circuits, providing impedance to alternating current, filtering noise, smoothing power supply outputs, and forming tuned circuits in radio-frequency applications. Coil inductors are available in many shapes and sizes, including air-core coils, ferrite-core coils, toroidal coils, and bobbin-wound types, each chosen for specific electrical and mechanical characteristics.Typical considerations when selecting a coil inductor include inductance value (measured in henries), current rating, DC resistance (DCR), quality factor (Q), self-resonant frequency (SRF), core material, and thermal performance. Air-core coils offer low loss and predictable inductance at higher frequencies, while ferrite-core and powdered-iron cores provide higher inductance in a compact footprint and improved magnetic coupling for power and RF applications. Toroidal geometries reduce electromagnetic interference (EMI) and stray flux, making them suitable for sensitive or space-constrained designs.Coil inductors are commonly used in power supplies (for buck, boost, and other converters), EMI/RFI filters, RF matching networks, oscillators, and impedance matching circuits. Proper selection and layout—including consideration of shielding, mounting orientation, and thermal dissipation—help ensure reliable performance and long-term stability. When integrating coil inductors into a design, review the manufacturer’s datasheet for rated current, saturation characteristics, and recommended operating conditions to match the inductor to the circuit’s electrical and environmental requirements.
