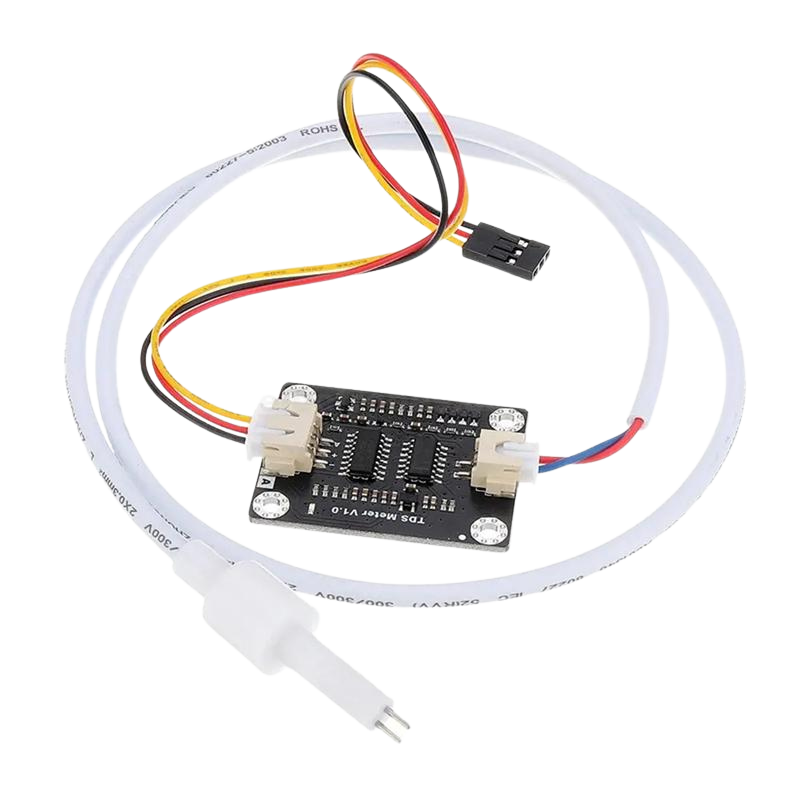

TDS Sensor Meter V1.0 Board Module (Measuring Water Quality)

The TDS Sensor Meter V1.0 Board Module measures Total Dissolved Solids (TDS) — the milligrams of soluble solids per liter of water — and reports the result in PPM (parts per million). Higher TDS values indicate more dissolved solids and reduced water cleanliness, so TDS readings provide a practical reference for assessing water quality. This kit enables development of custom measurement, data collection and transmission systems, and can be integrated into automated water treatment cycles where TDS is a control parameter. The included TDS probe is waterproof and suitable for long-term immersion; the signal transmitter board is not waterproof and must remain protected from moisture. Key Features Wide input voltage range: DC 3.3–5V for flexible power options. Analog output: 0–2.3V signal compatible with 5V or 3.3V controllers. AC excitation source to minimize probe polarization and improve measurement stability. Waterproof TDS probe for prolonged immersion measurements. Easy to use: Arduino compatible with simple plug-and-play connections, no soldering required. Specifications TDS Meter Module Input Voltage: DC 3.3 ~ 5V Output Voltage: 0 ~ 2.3V Working Current: 3 ~ 6mA TDS Measurement Range: 0 ~ 1000 ppm TDS Measurement Accuracy: ±10% F.S. (25 °C) Module Interface: XH2.54-3P Electrode Interface: XH2.54-2P TDS Probe Needles: 2 Total Length: 60 cm Connection Interface: XH2.54-2P Color: White Waterproof probe suitable for immersion measurement.
