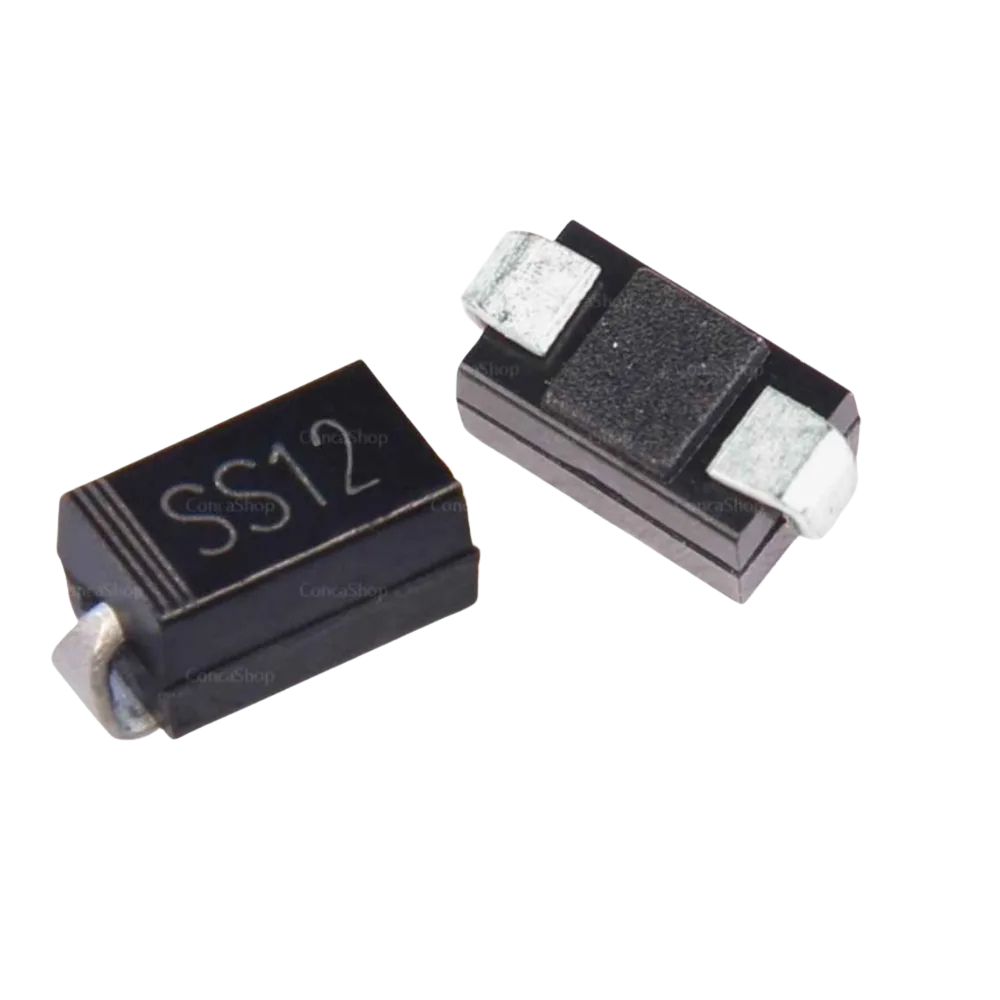

SS12 1A 20V SMD Schottky Diode DO-214AC

Overview: The SS12 1A 20V SMD Schottky Diode DO-214AC is a surface-mount rectifier designed for low forward voltage drop and fast switching in compact power and signal applications. The SS12 designation denotes a Schottky barrier diode rated for 1 ampere of average forward current and a maximum reverse voltage of 20 volts. Its DO-214AC (SMB) package provides robust thermal performance and reliable board mounting for automated assembly. Key characteristics and benefits: Low forward voltage drop for improved efficiency and reduced heat generation compared with standard silicon diodes. Fast switching behavior suitable for power supply, reverse-polarity protection, freewheeling, and general rectification tasks. Compact DO-214AC (SMB) surface-mount package that supports automated pick-and-place and wave or reflow soldering processes. 1A average forward current rating and 20V maximum reverse voltage as indicated by the product designation. Simple, widely used component for board-level protection and power-path designs. Handling and application notes: Observe standard ESD precautions and follow recommended soldering profiles for SMB packages to ensure proper wetting and reliable solder joints. Consult component datasheets and your assembly house for precise thermal limits, peak surge capability, typical forward voltage curves, and recommended land patterns before finalizing designs.
