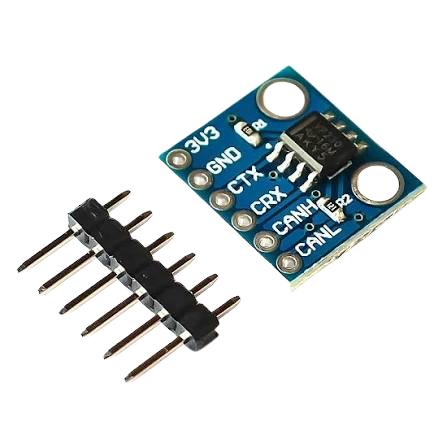

MCU230 Bus Transceiver SN65HVD230 CAN Communication Module

The MCU230 Bus Transceiver SN65HVD230 CAN Communication Module is a compact interface module designed to connect a microcontroller to a Controller Area Network (CAN) bus. It implements the physical-layer transceiver function, translating between the microcontroller's serial signaling and the differential CAN bus signals required for multi-node communication. The module is intended for prototyping, embedded development, and integration into control networks where reliable two-wire differential communication is needed.Engineered for straightforward integration, the module exposes the primary connections needed to link a host controller to the CAN bus and system power. Its small footprint and clear pin access simplify wiring and mounting in test setups and confined enclosures. The module is suitable for implementing standard CAN topologies and can be used as a building block when developing or expanding in-vehicle systems, industrial controllers, sensor networks, and other distributed embedded systems that rely on CAN messaging.When incorporating the module, observe best practices for CAN installations: provide a common ground reference between nodes, include proper termination resistors at bus ends, and follow recommended routing to minimize noise and ensure signal integrity. The module is intended to work in conjunction with a CAN controller or microcontroller peripheral that handles higher-layer protocol framing and error management. Follow the transceiver manufacturer's guidance for electrical connections and safe operating conditions when integrating the module into your design.
