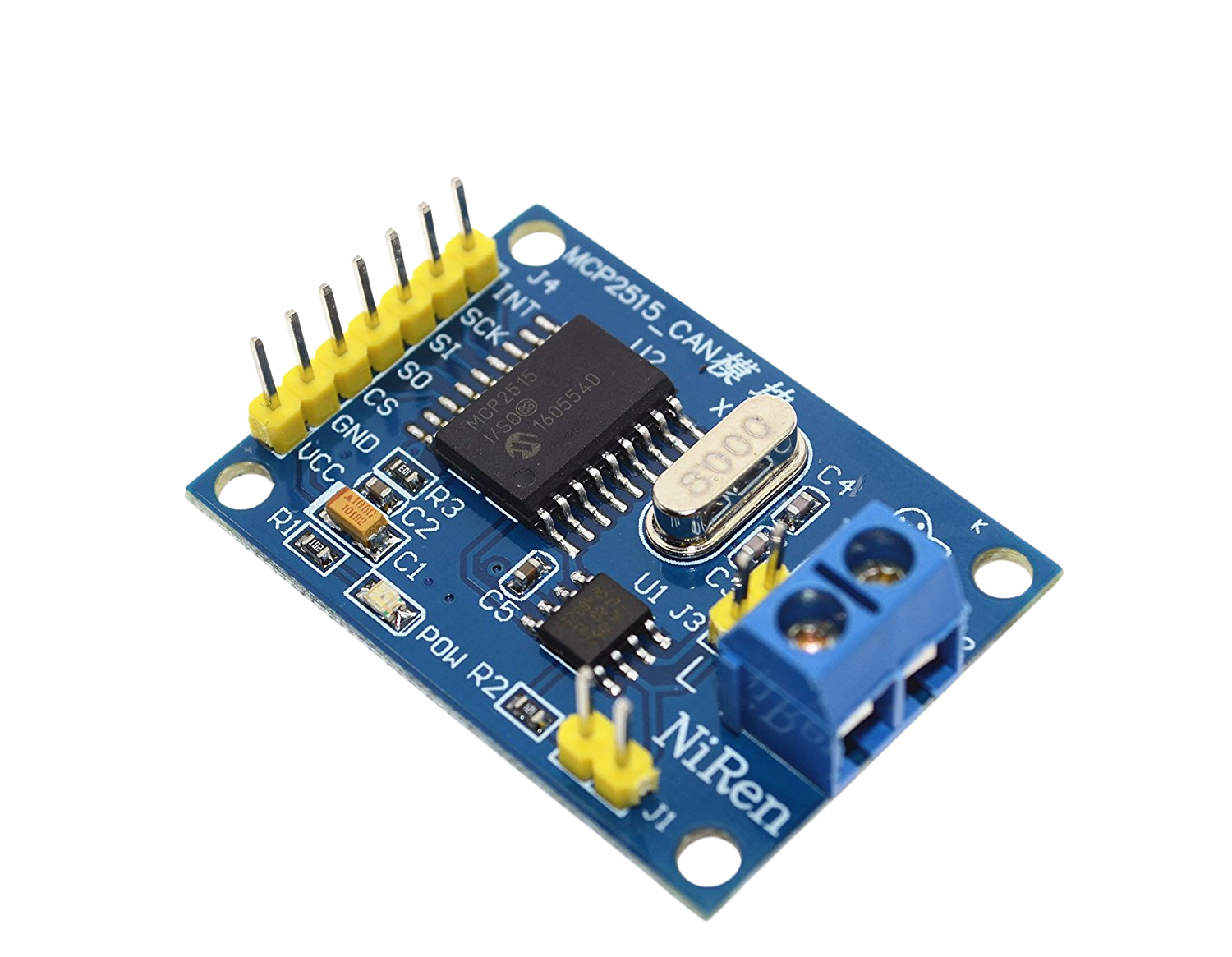

MCP2515 Can Bus Module

The MCP2515 Can Bus Module implements the Controller Area Network (CAN) protocol in a compact, stand-alone device intended for automotive and industrial communication applications. It integrates a dedicated CAN controller with an SPI interface to provide reliable and efficient CAN data transmission and reception. Supports CAN 2.0B protocol for compatibility with modern CAN networks and extended frame formats. Operates up to 1 Mbps to support fast and responsive data exchange. SPI interface communication for straightforward integration with microcontrollers and embedded systems. Built-in message filtering and buffering to improve data management and reduce processor load. Wide operating voltage range 2.7V to 5.5V to allow flexible power supply options. Equipped with a 16 MHz oscillator, the MCP2515 provides precise timing required for CAN protocol compliance. Its buffering capabilities enable smooth handling of multiple message queues and help reduce data loss during high traffic conditions. The SPI interface simplifies hardware design and accelerates development cycles for CAN-based projects, while the module’s robust architecture supports reliable operation in demanding environments. These characteristics make the MCP2515 Can Bus Module suitable for both prototyping and deployment in professional CAN network systems.
