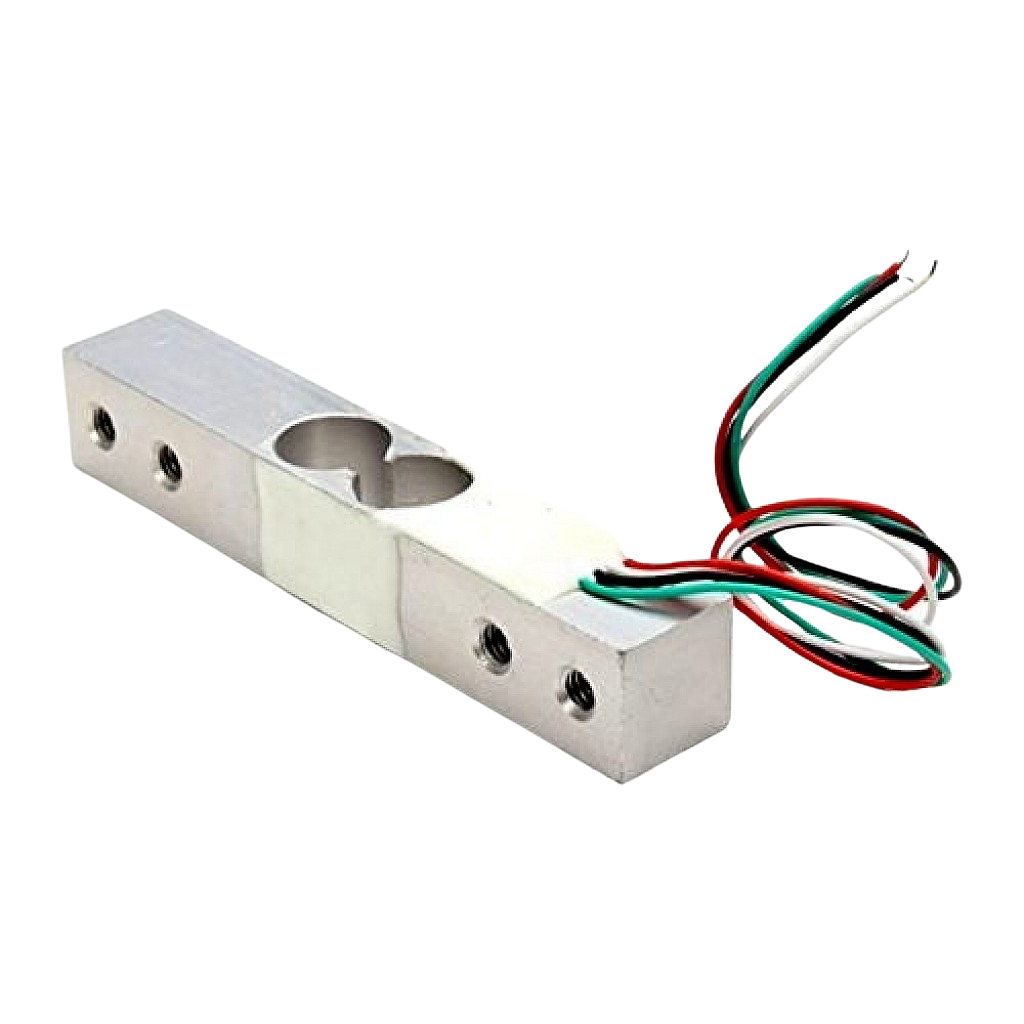

Load Cell 5KG

SKU: 194The Load Cell 5KG is a compact weighing transducer designed to convert a mechanical force—such as the weight of an object—into an electrical signal that can be measured and processed. As a 5 kilogram range device, it is commonly used where small to moderate loads must be monitored with a robust, reliable sensing element. Typical applications include bench scales, small platform scales, packaging equipment, force measurement fixtures, and laboratory test rigs.Installation generally involves securely mounting the sensor so that applied loads are transmitted through the sensing element in the intended direction, and providing appropriate mechanical alignment to avoid off-axis loading. Electrical connection is made to the cell's signal leads or connector and requires a compatible instrumentation amplifier, indicator, or data acquisition module to excite the bridge and measure the output signal. Proper cable routing and strain relief minimize noise and mechanical interference.For accurate measurements, appropriate calibration against known weights and routine verification are recommended. Environmental considerations such as temperature, moisture, and shock should be accounted for in the system design and installation. When integrating this load cell into a weighing system, select signal conditioning and mounting hardware that match the expected load range and operational environment to achieve consistent, reliable performance.
