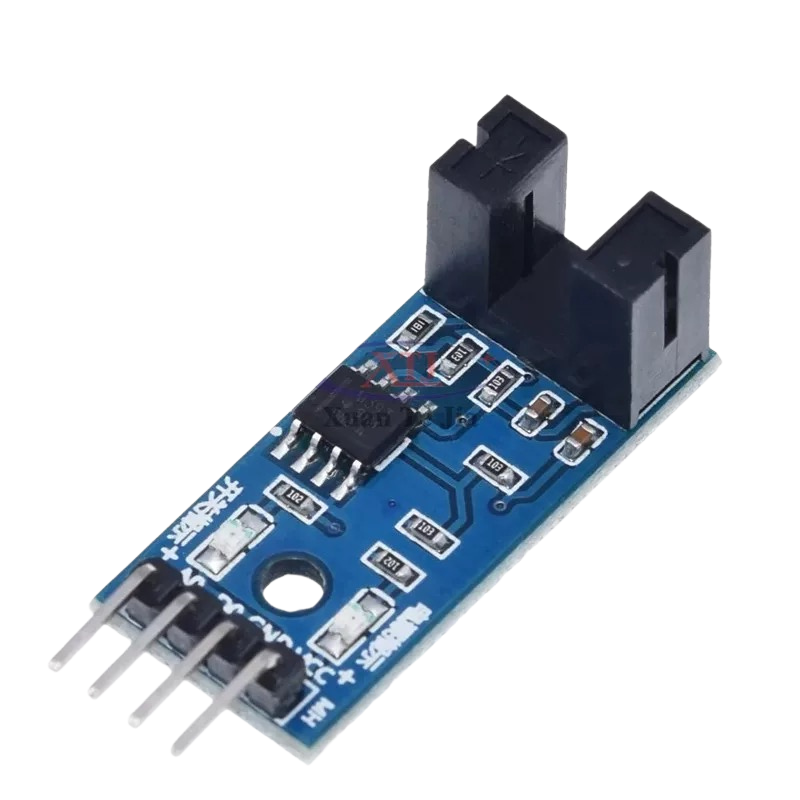

LM393 Motor Speed Measuring Sensor Module

The LM393 Motor Speed Measuring Sensor Module is a compact, easy-to-integrate module designed to provide reliable digital speed feedback from rotating shafts and wheels. Centered on the LM393 comparator, the module converts analog signals from an external sensor or reflective detector into clean digital pulse outputs suitable for microcontrollers, tachometers, and motor controllers.Key benefits include a stable digital pulse output for accurate RPM measurement, straightforward interfacing with 3.3V and 5V logic systems, and an adjustable sensitivity threshold to accommodate different sensor arrangements and surface reflectivity. The module typically outputs a square-wave signal corresponding to each detected rotation or mark, allowing speed and direction logic to be implemented in embedded systems or control software.Typical applications include robotics, motor control feedback loops, conveyor monitoring, tachometer systems, and general-purpose rotational speed sensing in prototypes and production equipment. The module is suited for use with microcontrollers such as Arduino, ESP32, Raspberry Pi (via appropriate input conditioning), and custom control boards. Its compact footprint and standard pinout simplify mounting and wiring in tight installations.For best results, pair the module with an appropriate sensor (optical reflective sensor, infrared emitter-detector pair, or magnetic pickup) matched to the target surface and mounting distance. The module provides a practical solution where dependable digital speed signals are needed for monitoring, control, or logging purposes.
