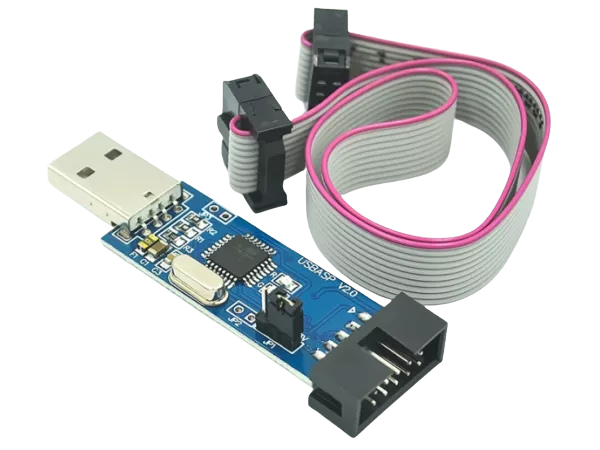

LC-01 51 AVR Atmega8 USB Programmer

Description This LC-01 51 AVR Atmega8 USB Programmer is a USBASP downloader that connects directly to a computer USB port to program and debug target microcontroller boards. It is a real USB downloader device designed for use with desktop and notebook computers and supports programming via the USB interface. Key Features Onboard ATmega8(L) microcontroller providing the USBASP functionality. Power and programming indicator LEDs for clear status feedback. Onboard 500mA self-recovering overcurrent protection fuse. Selectable target power: supports both 5V and 3.3V supplies via jumper. Compatible with AT89S51/52 series and supports AVR ASP-compatible chips. Standard Atmel 6-pin ISP output port (MOSI, MISO, RST, SCK, VCC, GND). AUTOSPEED feature adjusts download speed automatically to match the target chip frequency. Reserved PROGRAMMING header for firmware upgrades by the user. Technical Specifications Product name: USBASP Downloader (LC-01 51 AVR Atmega8 USB Programmer). Supply voltage: DC 5V / 3.3V selectable. Supported programming software: AVR_fighter, PROGISP 1.66 / 1.67 / 1.68. Operating temperature: -25°C to 85°C. Operating humidity: 5%–95% RH. Dimensions: 68 × 21 × 15 mm. Interface Definition MOSI: P1.5 MISO: P1.6 SCK: P1.7 RES: RST GND: GND 5V: VCC Supported Chips The programmer supports a wide range of 51-series and AVR-series microcontrollers. 51-series examples: AT89S51, AT89S52, AT89S53, AT89S8253, AT89S2051, AT89S8252, AT89S4051. AVR-series examples include ATTiny and ATmega families such as ATTiny12/13/24/25/44/45/84/85, ATMEGA8/48/88/168/328 and many other AVR devices listed in standard USBASP compatibility lists.
